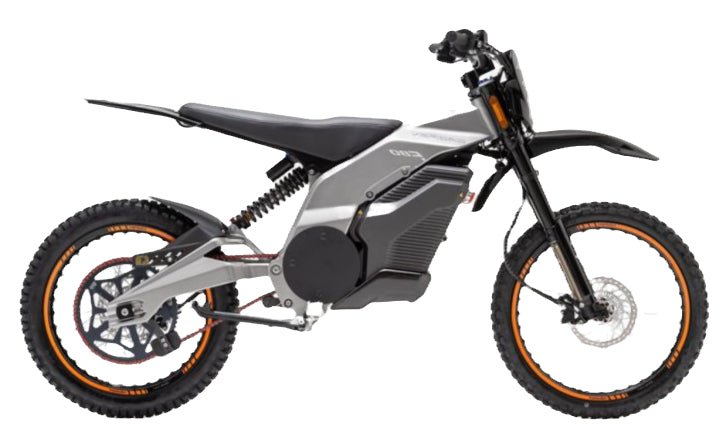

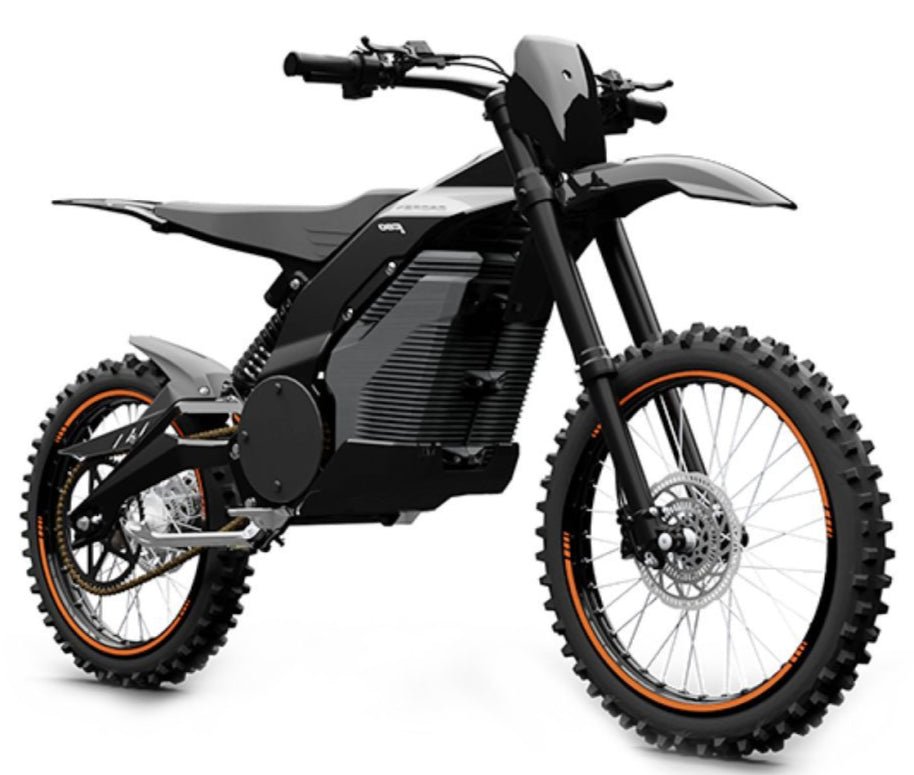

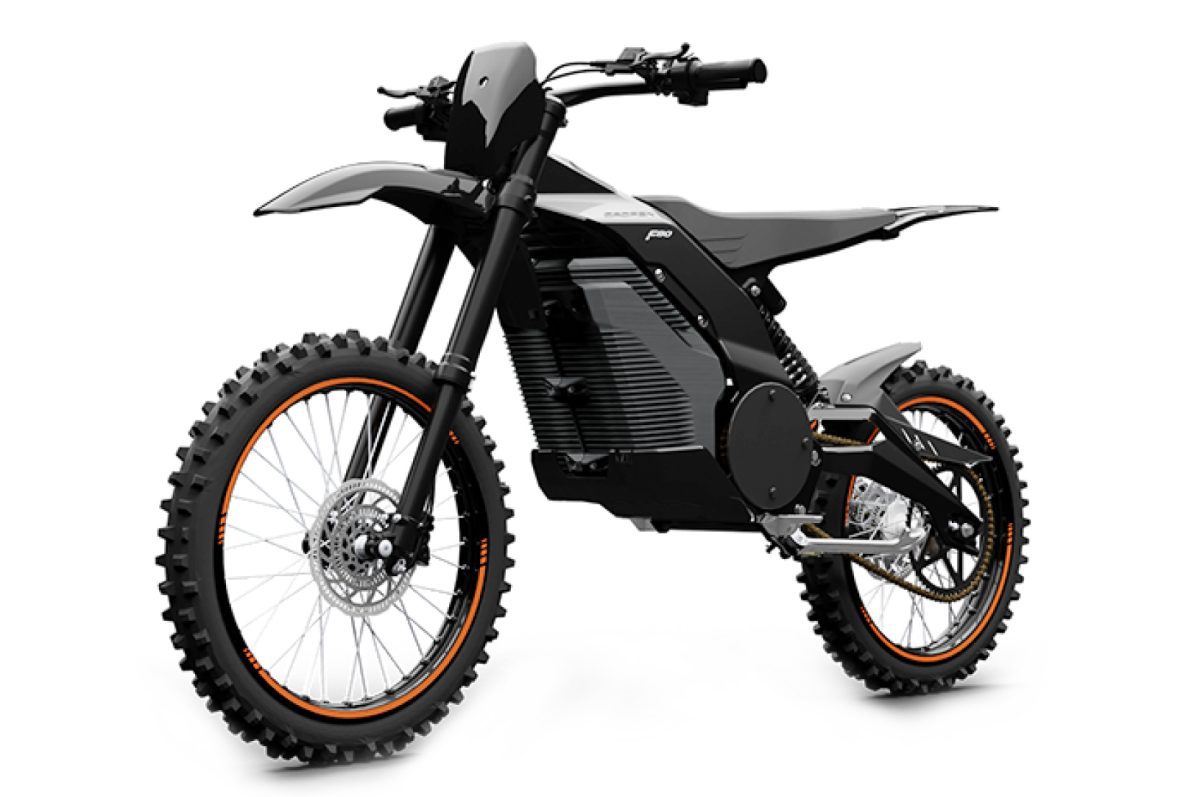

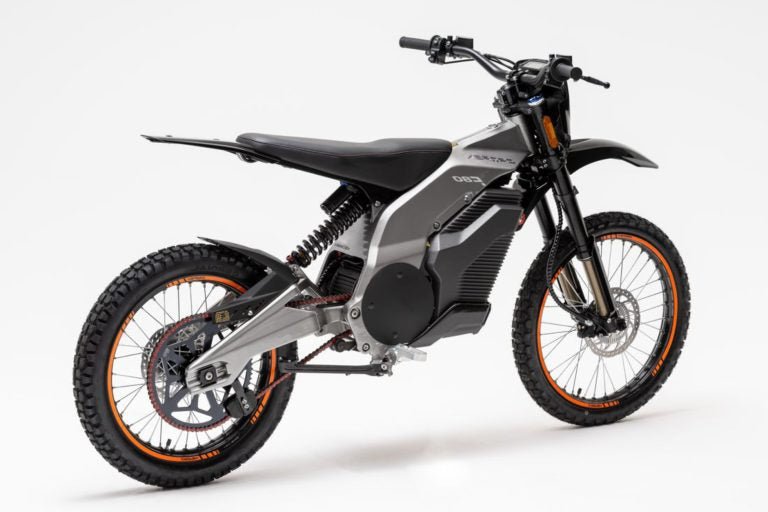

The CAOFEN F80 Off‑Road is a trail-conquering electric dirt bike that merges raw power with cutting-edge tech. Built on a precision-molded, zero-weld Magnarium alloy frame, it delivers unmatched durability and agility for riders who seek adventure in the toughest environments.

Key Features & Specs

• Motor: Permanent magnet synchronous air-cooled 8 kW (≈11 hp) mid-mounted motor, delivering up to 310 Nm of torque
  erideshawaii.com+13emmo.ca+13motoebikes.com+13

• Battery:

  • 72 V 30 Ah immersion-cooled lithium-ion (≈2.16 kWh)

  • Patented oil-cooling & auxiliary heating, rated IP67 for extreme durability

  • Range: 80 km (standard); upgrade to 48 Ah = 150 km caofenusa.com+7emmo.ca+7emmo.ca+7

• Charging: Fast charge in 2–5 hours via high-rate charger

• Frame & Build: One-piece Magnarium alloy ‘unibody’ chassis with 30% increased rigidity, promoting 50:50 weight distribution

• Suspension & Handling: Front fork with ~200 mm travel Monoshock rear suspension Climb angle capability up to 40°

• Brakes & Wheels:

• Dual-piston hydraulic disc brakes

• Front: 19″ wheel; Rear: 16″ wheel with knobby off-road tires

• Performance:

• 0–50 km/h in ~2.35 sec

• Top speed ~85 km/h (53 mph)

• Dimensions & Weight: 195 × 78.5 × 107 cm; 78 kg (175 lbs) with 30 Ah battery

• Load Capacity: Rated for 100 kg (220 lbs)
  Safety & Reliability: Zero-weld, monocoque frame Battery operates from –40 °C to +60 °C Waterproof IP67-rated components

• Warranty: 2-year coverage or 24,000 miles (battery options vary)

F80 Off‑Road Elevates Your Ride

• Ferocious Power & Torque: The 8 kW motor and 310 Nm torque deliver instant acceleration and unmatched climbing force.

• Extreme Durability: Zero-weld Mag-alloy chassis, immersion-cooled battery, and temperature range from –40 °C to +60 °C ensure performance in any conditions.

• Trail-Tamed Handling: 200 mm suspension travel and hydraulic brakes give aggressive control across rough terrain.

• Modular Range: Choose between 30 Ah (80 km) or long-range 48 Ah (150 km) setups to suit your riding needs.

• Tech-Rich Build: From one-piece construction to high-rate charging and IP67 protection—every component is engineered for reliability.
